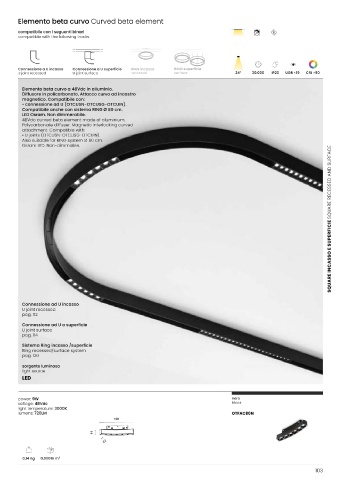

Elemento beta Beta element Elemento beta curvo Curved beta element

compatibile con i seguenti binari compatibile con i seguenti binari
compatible with the following tracks compatible with the following tracks

Connessione a U incasso Connessione a U superficie RING incasso RING superficie
SQUARE incasso recessed SQUARE superficie surface ROUND superficie surface 24° 30.000 IP20 UGR <19 CRI >90 U joint recessed U joint surface recessed surface 24° 30.000 IP20 UGR <19 CRI >90

Elemento beta a 48Vdc in alluminio. Diffusore Elemento beta curvo a 48Vdc in alluminio.
in policarbonato. Attacco ad incastro Diffusore in policarbonato. Attacco curvo ad incastro
magnetico. Compatibile con sistema SQUARE ad magnetico. Compatibile con:
incasso(OTBININ-OTBINIB), SQUARE a superficie • connessione ad U (OTCUSN-OTCUSG-OTCUIN).
(OTBINSN- OTBINSB- OTBINSG). Compatibile anche Compatibile anche con sistema RING Ø 80 cm.
con sistema ROUND. Non dimmerabile. LED Osram. Non dimmerabile.
48Vdc beta element made of aluminium. 48Vdc curved beta element made of aluminium.
Polycarbonate diffuser. Magnetic interlocking Polycarbonate diffuser. Magnetic interlocking curved
attachment. Compatible with SQUARE recessed attachment. Compatible with:
(OTBININ-OTBINIB) and SQUARE surface (OTBINSN • U joints (OTCUSN-OTCUSG-OTCUIN).
-OTBINSB - OTBINSG) systems. Also suitable for Also suitable for RING system Ø 80 cm.
ROUND system. Non-dimmable. Osram LED. Non-dimmable.
BINARI MAGNETICI 48V 48V MAGNETIC TRACKS

sorgente luminosa SQUARE INCASSO E SUPERFICIE SQUARE RECESSED AND SURFACE
light source
LED

power: 12W bianco nero
voltage: 48Vdc white black
light temperature: 3000K
lumens: 1006LM OTFA12B OTFA12N
216

44
22
Connessione ad U incasso
U joint recessed
0,17 Kg 0,0002 m 3
pag. 112

power: 24W bianco nero Connessione ad U a superficie
voltage: 48Vdc white black U joint surface
light temperature: 3000K pag. 114
lumens: 2012LM OTFA24B OTFA24N
433
Sistema Ring incasso /superficie
Ring recessed/surface system
pag. 120
44 sorgente luminosa
light source
22
LED
0,31 Kg 0,00041 m 3

power: 36W bianco nero power: 9W nero
voltage: 48Vdc white black voltage: 48Vdc black
light temperature: 3000K light temperature: 3000K
lumens: 3018LM OTFA36B OTFA36N lumens: 720LM OTFAC80N
648
169
44
22
44
22
0,43 Kg 0,00062 m 3 0,14 Kg 0,00016 m 3

102 103
