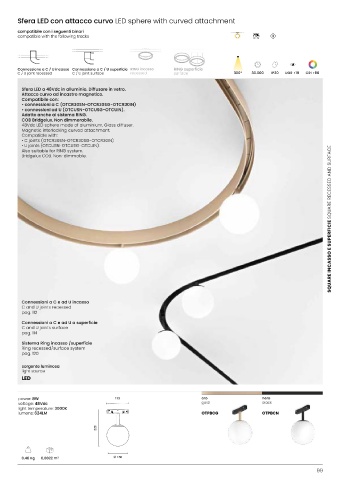

Sfera LED LED sphere Sfera LED con attacco curvo LED sphere with curved attachment

compatibile con i seguenti binari compatibile con i seguenti binari
compatible with the following tracks compatible with the following tracks

Connessione a C / U incasso Connessione a C / U superficie RING incasso RING superficie
SQUARE incasso recessed SQUARE superficie surface ROUND superficie surface 300° 30.000 IP20 UGR <19 CRI >90 C / U joint recessed C / U joint surface recessed surface 300° 30.000 IP20 UGR <19 CRI >90

Sfera LED a 48Vdc in alluminio. Diffusore in vetro. Sfera LED a 48Vdc in alluminio. Diffusore in vetro.
Attacco ad incastro magnetico. Compatibile con Attacco curvo ad incastro magnetico.
sistema SQUARE ad incasso(OTBININ-OTBINIB), Compatibile con:
SQUARE a superficie (OTBINSN - OTBINSB - OTBINSG). • connessioni a C (OTCR30SN-OTCR30SG-OTCR30IN)
Adatto anche al sistema ROUND. • connessioni ad U (OTCUSN-OTCUSG-OTCUIN).
COB Bridgelux. Non dimmerabile. Adatto anche al sistema RING.
48Vdc LED sphere made of aluminium. Glass diffuser. COB Bridgelux. Non dimmerabile.
Magnetic interlocking attachment. 48Vdc LED sphere made of aluminium. Glass diffuser.
Compatible with SQUARE recessed (OTBININ-OTBINIB) Magnetic interlocking curved attachment.
and SQUARE surface (OTBINSN -OTBINSB - OTBINSG) Compatible with:
systems. Also suitable for ROUND system. • C joints (OTCR30SN-OTCR30SG-OTCR30IN)
Bridgelux COB. Non-dimmable. • U joints (OTCUSN-OTCUSG-OTCUIN).
BINARI MAGNETICI 48V 48V MAGNETIC TRACKS
Also suitable for RING system.
Bridgelux COB. Non-dimmable. SQUARE INCASSO E SUPERFICIE SQUARE RECESSED AND SURFACE

Connessioni a C e ad U incasso
C and U joints recessed
pag. 112

Connessioni a C e ad U a superficie
C and U joints surface
pag. 114
Sistema Ring incasso /superficie
Ring recessed/surface system
pag. 120

sorgente luminosa sorgente luminosa
light source light source
LED LED

power: 8W 126 bianco oro nero power: 8W 113 oro nero
voltage: 48Vdc white gold black voltage: 48Vdc gold black
light temperature: 3000K light temperature: 3000K
lumens: 624LM OTPBB OTPBG OTPBN lumens: 624LM OTPBCG OTPBCN

195 220

Ø 120
0,41 Kg 0,003 m 3 0,48 Kg 0,0022 m 3 Ø 150
98 99
