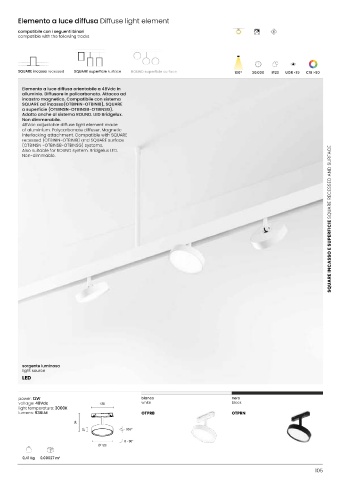

Elemento beta orientabile Adjustable beta element Elemento a luce diffusa Diffuse light element

compatibile con i seguenti binari compatibile con i seguenti binari
compatible with the following tracks compatible with the following tracks

SQUARE incasso recessed SQUARE superficie surface ROUND superficie surface 24° 30.000 IP20 UGR <19 CRI >90 SQUARE incasso recessed SQUARE superficie surface ROUND superficie surface 100° 30.000 IP20 UGR <19 CRI >90

Elemento beta orientabile a 48Vdc in alluminio. Elemento a luce diffusa orientabile a 48Vdc in
Diffusore in policarbonato. Attacco ad incastro alluminio. Diffusore in policarbonato. Attacco ad
magnetico. Compatibile con sistema SQUARE ad incasso incastro magnetico. Compatibile con sistema
(OTBININ-OTBINIB), SQUARE a superficie (OTBINSN- SQUARE ad incasso(OTBININ-OTBINIB), SQUARE
OTBINSB- OTBINSG). Adatto anche al sistema ROUND. a superficie (OTBINSN-OTBINSB-OTBINSG).
Non dimmerabile. Adatto anche al sistema ROUND. LED Bridgelux.
48Vdc adjustable beta element made of aluminium. Non dimmerabile.
Polycarbonate diffuser. Magnetic interlocking attachment. 48Vdc adjustable diffuse light element made
Compatible with SQUARE recessed (OTBININ-OTBINIB) and of aluminium. Polycarbonate diffuser. Magnetic
SQUARE surface (OTBINSN-OTBINSB-OTBINSG) systems. interlocking attachment. Compatible with SQUARE
Also suitable for ROUND system. recessed (OTBININ-OTBINIB) and SQUARE surface
Non-dimmable. (OTBINSN -OTBINSB-OTBINSG) systems.
BINARI MAGNETICI 48V 48V MAGNETIC TRACKS
Also suitable for ROUND system. Bridgelux LED.
Non-dimmable.

sorgente luminosa SQUARE INCASSO E SUPERFICIE SQUARE RECESSED AND SURFACE
light source
LED

power: 12W bianco nero
voltage: 48Vdc white black
light temperature: 3000K
lumens: 1006LM 233 OTFAR12B OTFAR12N

34
0 - 90°
75

0,31 Kg 0,00059 m 3

power: 24W bianco nero
voltage: 48Vdc white black
light temperature: 3000K
lumens: 2012LM OTFAR24B OTFAR24N
446

34
0 - 90° sorgente luminosa
light source
75
LED
0,58 Kg 0,0011 m 3

power: 36W bianco nero power: 12W bianco nero
voltage: 48Vdc white black voltage: 48Vdc 128 white black
light temperature: 3000K light temperature: 3000K
lumens: 3018LM 670 OTFAR36B OTFAR36N lumens: 936LM OTPRB OTPRN
94
34 24 355°
0 - 90°
0 - 90°
Ø 120
75
0,83 Kg 0,0016 m 3 0,41 Kg 0,00027 m 3

104 105
