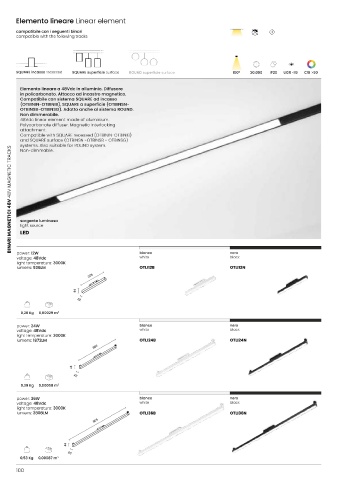

Elemento lineare Linear element Elemento lineare curvo Curved linear element

compatibile con i seguenti binari compatibile con i seguenti binari
compatible with the following tracks compatible with the following tracks

Connessione a U incasso Connessione a U superficie RING incasso RING superficie
SQUARE incasso recessed SQUARE superficie surface ROUND superficie surface 100° 30.000 IP20 UGR <19 CRI >90 U joint recessed U joint surface recessed surface 100° 30.000 IP20 UGR <19 CRI >90

Elemento lineare a 48Vdc in alluminio. Diffusore Elemento lineare curvo a 48Vdc in alluminio.
in policarbonato. Attacco ad incastro magnetico. Diffusore in policarbonato. Attacco curvo ad incastro
Compatibile con sistema SQUARE ad incasso magnetico. Compatibile con:
(OTBININ-OTBINIB), SQUARE a superficie (OTBINSN- • connessioni ad U (OTCUSN-OTCUSG-OTCUIN).
OTBINSB-OTBINSG). Adatto anche al sistema ROUND. Compatibile anche con sistema RING Ø 80 cm.
Non dimmerabile. LED Osram. Non dimmerabile.
48Vdc linear element made of aluminium. 48Vdc curved linear element made of aluminium.
Polycarbonate diffuser. Magnetic interlocking Polycarbonate diffuser. Magnetic interlocking curved
attachment. attachment. Compatible with:
Compatible with SQUARE recessed (OTBININ-OTBINIB) • U joints (OTCUSN-OTCUSG-OTCUIN).
and SQUARE surface (OTBINSN -OTBINSB - OTBINSG) Also suitable for RING system Ø 80 cm.
systems. Also suitable for ROUND system. Osram LED. Non-dimmable.
BINARI MAGNETICI 48V 48V MAGNETIC TRACKS
Non-dimmable.

sorgente luminosa SQUARE INCASSO E SUPERFICIE SQUARE RECESSED AND SURFACE
light source
LED

power: 12W bianco nero
voltage: 48Vdc white black
light temperature: 3000K
lumens: 936LM OTLI12B OTLI12N
305

44

22
Connessione ad U incasso
U joint recessed
0,20 Kg 0,00029 m 3 pag. 112

Connessione ad U a superficie
power: 24W bianco nero
voltage: 48Vdc white black U joint surface
pag. 114
light temperature: 3000K
lumens: 1872LM OTLI24B OTLI24N
Sistema Ring incasso /superficie
605
Ring recessed/surface system
pag. 120
44 sorgente luminosa
light source
22
LED
0,39 Kg 0,00058 m 3
power: 36W bianco nero power: 9W nero
voltage: 48Vdc white black voltage: 48Vdc black
light temperature: 3000K light temperature: 3000K
lumens: 2808LM OTLI36B OTLI36N lumens: 702LM OTLC80N
905 169
44
22
44
22
0,53 Kg 0,00087 m 3 0,14 Kg 0,00016 m 3
