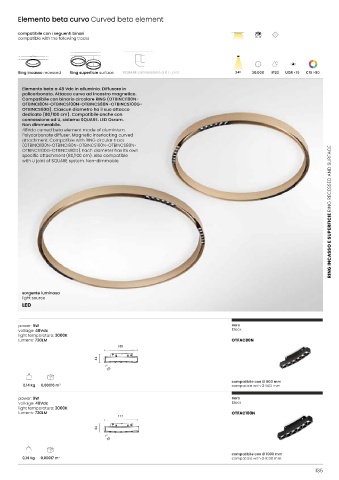

Elemento lineare curvo Curved linear element Elemento beta curvo Curved beta element

compatibile con i seguenti binari compatibile con i seguenti binari
compatible with the following tracks compatible with the following tracks

RING incasso recessed RING superficie surface SQUARE connessione a U U joint 100° 30.000 IP20 UGR <19 CRI >90 Ring incasso recessed Ring superficie surface SQUARE connessione a U U joint 24° 30.000 IP20 UGR <19 CRI >90

Elemento lineare curvo a 48 Vdc in alluminio. Diffusore Elemento beta a 48 Vdc in alluminio. Diffusore in
in policarbonato. Attacco curvo ad incastro magnetico. policarbonato. Attacco curvo ad incastro magnetico.
Compatibile con binario circolare RING (OTBINCI100N- Compatibile con binario circolare RING (OTBINCI100N-
OTBINCI80N-OTBINCS100N-OTBINCS80N-OTBINCS100G- OTBINCI80N-OTBINCS100N-OTBINCS80N-OTBINCS100G-
OTBINCS80G). Ciascun diametro ha il suo attacco OTBINCS80G). Ciascun diametro ha il suo attacco
dedicato (80/100 cm). Compatibile anche con dedicato (80/100 cm). Compatibile anche con
connessione ad U, sistema SQUARE. LED Osram. connessione ad U, sistema SQUARE. LED Osram.
Non dimmerabile Non dimmerabile.
48Vdc curved linear element made of aluminium. 48Vdc curved beta element made of aluminium.
Polycarbonate diffuser. Magnetic interlocking curved Polycarbonate diffuser. Magnetic interlocking curved
attachment. Compatible with RING circular track attachment. Compatible with RING circular track
(OTBINCI100N-OTBINCI80N-OTBINCS100N-OTBINCS80N- (OTBINCI100N-OTBINCI80N-OTBINCS100N-OTBINCS80N-
BINARI MAGNETICI 48V 48V MAGNETIC TRACKS
OTBINCS100G -OTBINCS80G). Each diameter has its own OTBINCS100G-OTBINCS80G). Each diameter has its own
specific attachment (80/100 cm). Also compatible with U specific attachment (80/100 cm). Also compatible
joint of SQUARE system. Osram LED. Non-dimmable. with U joint of SQUARE system. Non-dimmable. RING INCASSO E SUPERFICIE RING RECESSED AND SURFACE

sorgente luminosa sorgente luminosa
light source light source
LED LED

power: 9W nero power: 9W nero
voltage: 48Vdc black voltage: 48Vdc black
light temperature: 3000K light temperature: 3000K
lumens: 702LM OTLC80N lumens: 720LM OTFAC80N
169 169
44 44
22 22

compatibile con Ø 800 mm compatibile con Ø 800 mm
0,14 Kg 0,00016 m 3 compatible with Ø 800 mm 0,14 Kg 0,00016 m 3 compatible with Ø 800 mm

power: 9W nero power: 9W nero
voltage: 48Vdc black voltage: 48Vdc black
light temperature: 3000K light temperature: 3000K
lumens: 702LM OTLC100N lumens: 720LM OTFAC100N
177
177
44
44
22
22
compatibile con Ø 1000 mm compatibile con Ø 1000 mm
0,14 Kg 0,00017 m 3 compatible with Ø 1000 mm 0,14 Kg 0,00017 m 3 compatible with Ø 1000 mm

134 135
