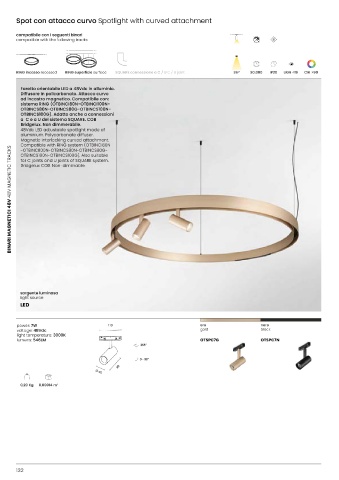

Spot con attacco curvo Spotlight with curved attachment Sfera LED con attacco curvo LED sphere with curved attachment

compatibile con i seguenti binari compatibile con i seguenti binari
compatible with the following tracks compatible with the following tracks

RING incasso recessed RING superficie surface SQUARE connessione a C / U C / U joint 36° 30.000 IP20 UGR <19 CRI >90 RING incasso recessed RING superficie surface SQUARE connessione a C / U C / U joint 300° 30.000 IP20 UGR <19 CRI >90

Faretto orientabile LED a 48Vdc in alluminio. Sfera LED a 48Vdc in alluminio. Diffusore in
Diffusore in policarbonato. Attacco curvo vetro. Attacco curvo ad incastro magnetico.
ad incastro magnetico. Compatibile con: Compatibile con sistema RING (OTBINCI80N-
sistema RING (OTBINCI80N-OTBINCI100N- OTBINCI100N-OTBINCS80N-OTBINCS80G-
OTBINCS80N-OTBINCS80G-OTBINCS100N- OTBINCS100N-OTBINCS100G). Adatto anche a
OTBINCS100G). Adatto anche a connessioni connessioni a C e a U del sistema SQUARE.
a C e a U del sistema SQUARE. COB COB Bridgelux. Non dimmerabile.
Bridgelux. Non dimmerabile. 48Vdc LED sphere made of aluminium.
48Vdc LED adjustable spotlight made of Glass diffuser. Magnetic interlocking curved
aluminium. Polycarbonate diffuser. attachment. Compatible with RING system
Magnetic interlocking curved attachment. (OTBINCI80N-OTBINCI100N-OTBINCS80N-
Compatible with RING system (OTBINCI80N OTBINCS80G-OTBINCS100N-OTBINCS100G).
BINARI MAGNETICI 48V 48V MAGNETIC TRACKS
-OTBINCI100N-OTBINCS80N-OTBINCS80G- Also suitable for C joints and U joints of SQUARE
OTBINCS100N-OTBINCS100G). Also suitable system. Bridgelux COB. Non-dimmable.
for C joints and U joints of SQUARE system.
Bridgelux COB. Non-dimmable. RING INCASSO E SUPERFICIE RING RECESSED AND SURFACE

sorgente luminosa sorgente luminosa
light source light source
LED LED

power: 7W 113 oro nero power: 8W 113 oro nero
voltage: 48Vdc gold black voltage: 48Vdc gold black
light temperature: 3000K light temperature: 3000K
lumens: 546LM OTSPC7G OTSPC7N lumens: 624LM OTPBCG OTPBCN
355°
220
0 - 90°
90
Ø 40
0,20 Kg 0,00014 m 3 0,48 Kg 0,0022 m 3 Ø 150

132 133
