Page 529 - Viokef 2023

TRACK MAGNETIC 48VDC

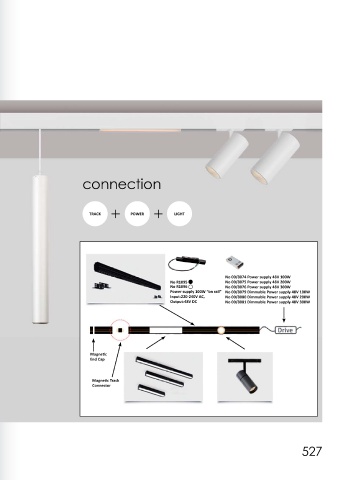

accessories connection

No 02/0201 No 02/0202
No 02/0301 Magnetic track TRACK + POWER + LIGHT
Magnetic track rail rail recessed
48VDC 48VDC
26.2 26.2

52.2 52.2
22
12
16.6 22.8
22.8 30.8
70
No 00/8074 Power supply 48V 100W
No R1095 No 00/8075 Power supply 48V 200W
No R1096 No 00/8076 Power supply 48V 300W
Power supply 100W “on rail” No 00/8079 Dimmable Power supply 48V 100W
Magnetic Track Rail Input:220-240V AC, No 00/8080 Dimmable Power supply 48V 200W
Output:48V DC No 00/8081 Dimmable Power supply 48V 300W

No 02/0204 No 02/0206 No 02/0205 No 02/0203 No 02/0216 No 02/0211
No 02/0304 No 02/0306 No 02/0305 No 02/0303 No 02/0316 No 02/0311
Magnetic Connector Magnetic central Straight joiner End cup set Frame Cover Suspension Kit 1.5m
connector

Magnetic
End Cap

Magnetic Track
Connector
No 02/0207 No 02/0212 No 02/0213 No 02/0214 No 02/0215 Magnetic Light Magnetic Spot
No 02/0307 L Vertical recessed No 02/0313 L Horizontal recessed No 02/0315
Magnetic flexible Connector L Vertical surface Connector L Horizontal surface
Connector Frame only Connector Frame only Connector
Frame only Frame only

526 527
