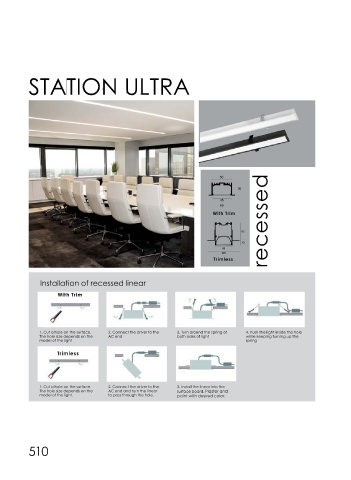

STATION ULTRA
STATION

Configurate your code according to your needs:

Illumination Type Size (Length) – CCT (Kelvin) – Color & Finish – Dimming Type
3911-03 19 3 B N
Recessed with Trim L580 • 15W • 2565Lm 3000k Black On-off
20 4 W D3
50 L1140 • 30W • 5130Lm 4000k White DALI
21 D4
30 L1700 • 44W • 7695Lm Push
22
45 L2260 • 59W • 10260Lm
65 23
recessed
50 L2820 • 73W • 12825Lm
30
Illumination Type Size (Length) – CCT (Kelvin) – Color & Finish – Dimming Type
45 3911-04 19 3 W N
65
Recessed Trimless L580 • 15W • 2565Lm 3000k White On-off
With Trim 20 4 D3
L1140 • 30W • 5130Lm 4000k DALI
21 D4
62 62 L1700 • 44W • 7695Lm Push
22
13 13 L2260 • 59W • 10260Lm
55 55
105 105 23
Trimless L2820 • 73W • 12825Lm

Installation of recessed linear

With Trim

1. Cut a hole on the surface. 2. Connect the driver to the 3. Turn around the spring at 4. Push the light inside the hole Code Example: 3911-0319-3-W-D3
The hole size depends on the AC end both sides of light while keeping turning up the
model of the light spring
Trimless Illumination Type Size (Length) – CCT (Kelvin) – Color & Finish – Dimming Type

3911-03 19 3 W D3
L580 • 15W • 2565Lm 3000k White DALI

Create your own Code:
1. Cut a hole on the surface. 2. Connect the driver to the 3. Install the linear into the
The hole size depends on the AC end and turn the linear surface board. Plaster and
model of the light. to pass through the hole. paint with desired color. – – – – – –

NOTE: Different sizes, different CCT and Level of output Lumen upon request

Για την σωστή εφαρμογή των χωνευτών προϊόντων προτού ξεκινήσετε τη διαδικασία “χώνευσης”,
πρέπει να έχετε δείγμα του προϊόντος που πρόκειται να τοποθετήσετε.
For the correct placement of recessed lights you must have a sample of the product
before you proceed with the cutting of the plasterboard.
