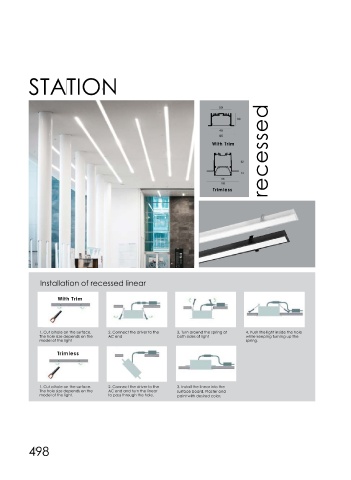

STATION

Configurate your code according to your needs:
recessed
50
Illumination Type Size (Length) – CCT (Kelvin) – Color & Finish – Dimming Type
30
3911-03 13 3 B N
Recessed with trim L890 • 30W • 2800Lm 3000k Black On-off
45
D1
W
30
4
65 L1190 • 48W • 4640Lm 4000k White Phase Cut
With Trim
50 14 U D2
L1480 • 60W • 5800Lm Anodized 0-10V
30 15
62
L1780 • 80W • 7100Lm
45 26
13
65 L2070 • 90W • 8100Lm
55
105 27
Trimless L2360 • 100W • 9820Lm
28
L2660 • 110W • 10440Lm
29
L2950 • 120W • 11600Lm
Illumination Type Size (Length) – CCT (Kelvin) – Color & Finish – Dimming Type
3911-04 13 3 B N
Recessed trimless L890 • 30W • 2800Lm 3000k Black On-off
30 4 W D1
L1190 • 48W • 4640Lm 4000k White Phase Cut
14 U D2
L1480 • 60W • 5800Lm Anodized 0-10V
15
62 L1780 • 80W • 7100Lm
Installation of recessed linear 26
13 L2070 • 90W • 8100Lm
55 27
With Trim 105 L2360 • 100W • 9820Lm
28
L2660 • 110W • 10440Lm
29
L2950 • 120W • 11600Lm
1. Cut a hole on the surface. 2. Connect the driver to the 3. Turn around the spring at 4. Push the light inside the hole
The hole size depends on the AC end both sides of light while keeping turning up the Code Example: 3911-0313-3-W-D2
model of the light spring.
Trimless
Illumination Type Size (Length) – CCT (Kelvin) – Color & Finish – Dimming Type
3911-03 13 3 W D2
L890 • 39W • 3500Lm 3000k White 0-10V
Create your own Code:
1. Cut a hole on the surface. 2. Connect the driver to the 3. Install the linear into the
The hole size depends on the AC end and turn the linear surface board. Plaster and
model of the light. to pass through the hole. paint with desired color. – – –

NOTE: Different sizes, different CCT and Level of output Lumen upon request

Για την σωστή εφαρμογή των χωνευτών προϊόντων προτού ξεκινήσετε τη διαδικασία “χώνευσης”,
πρέπει να έχετε δείγμα του προϊόντος που πρόκειται να τοποθετήσετε.
For the correct placement of recessed lights you must have a sample of the product
before you proceed with the cutting of the plasterboard.
