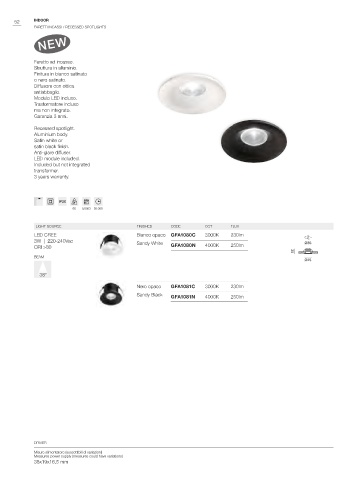

Page 54 - Gea Led Técnico 2023

52 INDOOR
FARETTI INCASSI / RECESSED SPOTLIGHTS

Faretto ad incasso.
Struttura in alluminio.
Finitura in bianco satinato
o nero satinato.
Diffusore con ottica
antiabbaglio.
Modulo LED incluso.
Trasformatore incluso
ma non integrato.
Garanzia 3 anni.

Recessed spotlight.
Aluminium body.
Satin white or
satin black finish.
Anti-glare diffuser.
LED module included.
Included but not integrated
transformer.
3 years warranty.

IP20 gr m 3 IP20 gr m 3
65 0,0003 50.000 70 0,0003 50.000

LIGHT SOURCE FINISHED CODE CCT FLUX LIGHT SOURCE FINISHED CODE CCT FLUX
LED CREE Bianco opaco GFA1080C 3000K 230lm LED CREE Bianco opaco GFA1090C 3000K 230lm
3W | 220-240Vac Sandy White Ø35 3W | 220-240Vac Sandy White Ø32
CRI >80 GFA1080N 4000K 250lm 35 CRI >80 GFA1090N 4000K 250lm

BEAM BEAM 50
Ø45
Ø35
38° 38°

Nero opaco GFA1081C 3000K 230lm Nero opaco GFA1091C 3000K 230lm
Sandy Black GFA1081N 4000K 250lm Sandy Black GFA1091N 4000K 250lm

LED CREE Bianco opaco GFA1092C 3000K 230lm
3W | 220-240Vac Sandy White Ø32
CRI >80 GFA1092N 4000K 250lm
BEAM 50
35 x 35
38°

Nero opaco GFA1093C 3000K 230lm
Sandy Black GFA1093N 4000K 250lm

DRIVER DRIVER
Misure alimentatore (suscettibili di variazioni) Misure alimentatore (suscettibili di variazioni)
Measures power supply (measures could have variations) Measures power supply (measures could have variations)
38x19x16,5 mm 38x19x16,5 mm
