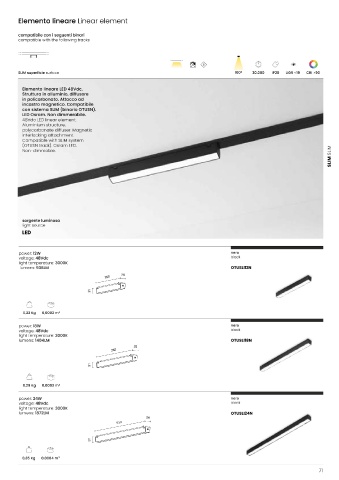

Elemento beta Beta element Elemento lineare Linear element

compatibile con i seguenti binari compatibile con i seguenti binari
compatible with the following tracks compatible with the following tracks

SLIM superficie surface 24° 30.000 IP20 UGR <19 CRI >90 SLIM superficie surface 100° 30.000 IP20 UGR <19 CRI >90

Elemento lineare LED con Elemento lineare LED 48Vdc.
lenti antiabbaglio, 48Vdc. Struttura in alluminio, diffusore
Struttura in alluminio, diffusore in policarbonato. Attacco ad
in policarbonato. Attacco ad incastro magnetico. Compatibile
incastro magnetico. Compatibile con sistema SLIM (binario OTUSN).
con sistema SLIM (binario OTUSN). LED Osram. Non dimmerabile.
LED Osram. Non dimmerabile. 48Vdc LED linear element.
LED linear element with anti- Aluminium structure,
glare lens, 48Vdc. Aluminium polycarbonate diffuser. Magnetic
structure, polycarbonate diffuser. interlocking attachment.
Magnetic interlocking attachment. Compatible with SLIM system
Compatible with SLIM system (OTUSN track). Osram LED.
BINARI MAGNETICI 48V 48V MAGNETIC TRACKS
SLIM SLIM
(OTUSN track). Osram LED. Non-dimmable.
Non-dimmable.

sorgente luminosa sorgente luminosa
light source light source
LED LED

power: 12W nero power: 12W nero
voltage: 48Vdc black voltage: 48Vdc black
light temperature: 3000K light temperature: 3000K
lumens: 1006LM OTUSFA12N lumens: 936LM OTUSLI12N
26 26
260 260
31 31

0,22 Kg 0,0002 m 3 0,22 Kg 0,0002 m 3

power: 18W nero power: 18W nero
voltage: 48Vdc black voltage: 48Vdc black
light temperature: 3000K light temperature: 3000K
lumens: 1509LM OTUSFA18N lumens: 1404LM OTUSLI18N
26 26
382 382

31 31

0,29 Kg 0,0003 m 3 0,29 Kg 0,0003 m 3

power: 24W nero power: 24W nero
voltage: 48Vdc black voltage: 48Vdc black
light temperature: 3000K light temperature: 3000K
lumens: 2012LM OTUSFA24N lumens: 1872LM OTUSLI24N
26 26
510 510

31 31

0,35 Kg 0,0004 m 3 0,35 Kg 0,0004 m 3

70 71
