Sospensione a goccia Drop suspension

compatibile con i seguenti binari
compatible with the following tracks

SQUARE incasso recessed SQUARE superficie surface ROUND superficie surface 38° 30.000 IP20 UGR <19 CRI >90
bianco nero
Elemento LED a goccia a sospensione 48Vdc drop LED suspension element white black
a 48Vdc in alluminio. Diffusore in made of aluminium. Polycarbonate
policarbonato. Attacco ad incastro diffuser. OTSOB OTSON
magnetico. Compatibile con sistema Magnetic interlocking attachment.
SQUARE ad incasso (OTBININ- Compatible with SQUARE
OTBINIB), SQUARE a superficie recessed(OTBININ-OTBINIB) and
(OTBINSN-OTBINSB-OTBINSG). SQUARE surface (OTBINSN-OTBINSB-
Adatto anche al sistema ROUND. OTBINSG) systems. Also suitable for
Cavetti regolabili. COB Bridgelux. Non ROUND system. Adjustable cables.
dimmerabile. Bridgelux COB. Non-dimmable.
192
sorgente luminosa
BINARI MAGNETICI 48V 48V MAGNETIC TRACKS
light source 51
LED
power: 4W
voltage: 48Vdc max 1500
light temperature: 3000K
lumens: 312LM
59

0,24 Kg 0,00014 m 3 Ø 50 Regolazione cavi a pag. 119 / Cable adjustment p. 119

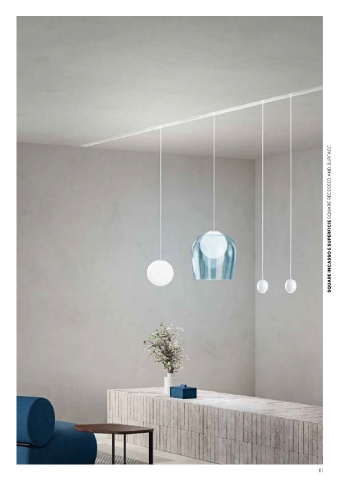

Sospensione a sfera Sphere suspension SQUARE INCASSO E SUPERFICIE SQUARE RECESSED AND SURFACE
compatibile con i seguenti binari
compatible with the following tracks

SQUARE incasso recessed SQUARE superficie surface ROUND superficie surface 300° 30.000 IP20 UGR <19 CRI >90

Elemento a sospensione a 48Vdc in bianco oro nero
white gold black
alluminio. Diffusore in vetro. Attacco
ad incastro magnetico. Compatibile
OTSBB OTSBG OTSBN
con sistema SQUARE ad incasso
(OTBININ-OTBINIB), SQUARE a superficie
(OTBINSN-OTBINSB-OTBINSG).
Adatto anche al sistema ROUND.
192
Cavetti regolabili. COB Bridgelux.
Non dimmerabile. Compatibile 51
con vetri ALFA medio, acquistabili
separatamente.
48Vdc suspension element made of
aluminium. Glass diffuser. Magnetic max 1530
interlocking attachment. Compatible
with SQUARE recessed(OTBININ-OTBINIB)
and SQUARE surface (OTBINSN-
OTBINSB- OTBINSG) systems. Also
suitable for ROUND system. Adjustable
cables. Bridgelux COB. Non-dimmable.
Compatible with ALFA medium glasses, Ø 150
purchased separately. Regolazione cavi a pag. 119 / Cable adjustment p. 119
sorgente luminosa Vetro ALFA medio trasparente ottanio verde ambra fumé
light source transparent octane green amber smoky
ALFA medium glass
LED
ALFA/MD-TRASP ALFA/MD-OTTANIO ALFA/MD-VERDE ALFA/MD-AMBRA ALFA/MD-FUME
power: 8W Ø 240
voltage: 48Vdc
Ø 110
light temperature: 3000K
lumens: 624LM
230

0,48 Kg 0,0028 m 3 1 Kg 0,02 m 3
Ø 200
110 Per codici METEL vedere listino See the price list for METEL codes 111
